In the realm of machinery maintenance, ensuring optimal lubrication levels poses a significant challenge often resulting in either over-lubrication or under-lubrication. Manual lubrication, while straightforward, frequently results in inaccuracies due to infrequent maintenance cycles. Technicians, anticipating long intervals before the next service, may apply excessive lubricant, leading to suboptimal operational performance. Ideally, maintenance strategies should aim for a lubrication feed that matches the system’s loss rate, maintaining an ideal balance.
Achieving this balance requires innovative systems that are both cost-effective and low-maintenance, eliminating the need for external energy sources. Gravity and spring forces emerge as prime candidates to power such lubrication systems due to their omnipresence and cost-efficiency. Gravity-based lubricators, in particular, offer a straightforward solution by utilizing the ubiquitous force of gravity to maintain constant lubrication levels without incurring additional energy costs.
Gravity feed lubricators consist of an oil reservoir that relies on gravity to regulate the oil supply to machinery. These systems are valued for their simplicity and low maintenance needs. Some variations are designed to integrate with machine operation, including shut-off valves that halt lubricant supply when the machine is not in use, adding a layer of control but also complexity. This design inherently incorporates a contamination risk during refills but is countered with simple controls such as needle valves to adjust flow rates, ensuring a balance between ease of maintenance and operational efficiency.
When using these auto-level lubricators, care should be taken to ensure that:
- The oil flow direction inside the reservoir should run toward the lubricator.
- The breathers and vents should be closed – otherwise, the venturi effect will draw additional lubricant into the reservoir.
Both of these steps help to ensure that the lube oil stays level, which can be crucial to ensuring adequate lubrication, particularly in splash-lubricated gearboxes and rolling element bearings.

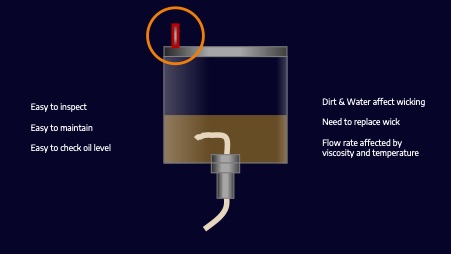

Beyond gravity feed systems, wick lubricators provide an alternate method by utilizing a wick system to maintain a constant lubrication rate. Adjusting the wick thickness or length alters the lubrication rate, offering flexibility in maintenance strategies. Like gravity feeders, wick systems are easy to inspect and maintain due to their minimal moving parts. However, they are susceptible to performance variations due to contaminants and temperature changes affecting the lubricant’s viscosity.
Both gravity and wick lubrication systems, while low in maintenance requirements, are not without their challenges. Refilling these systems introduces potential contamination points, and wick systems, in particular, can suffer from reduced efficacy due to contaminants absorbed by the wick material. Regular maintenance, including wick replacement and monitoring of the lubricant’s condition, is vital to ensure the longevity and reliability of these lubrication systems.
